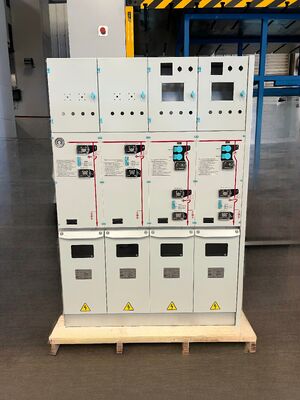

Rated power frequency withstand voltage 42 48 KV Medium Voltage Switchgear for power distribution and electrical system management

Product Description:

The Medium Voltage Switchgear is an essential component in electrical distribution systems, designed to ensure reliable control, protection, and isolation of electrical equipment. Engineered to operate at a rated operating voltage of AC220 Ua and a rated voltage of 12 KV, this switchgear is ideal for medium voltage applications where safety, efficiency, and durability are paramount. With a rated current capacity of 630 A, it provides robust performance to handle substantial electrical loads, making it suitable for industrial, commercial, and utility installations.

One of the key features of this Medium Voltage Switchgear is its high protection degree of IP4X. This ensures that the internal components are well-protected against solid foreign objects and dust ingress, thereby enhancing the reliability and longevity of the equipment. The design meets stringent safety standards, minimizing the risk of electrical faults and enabling safe operation and maintenance by qualified personnel.

In addition to its superior protection capabilities, the switchgear boasts a rated power frequency withstand voltage of 42/48 KV. This attribute allows the equipment to withstand high voltage surges and transient conditions without compromising its structural integrity or operational stability. Such resilience is critical in environments where voltage fluctuations and transient overvoltages are common, ensuring continuous service and reducing downtime.

A notable aspect of this Medium Voltage Switchgear is the integration of the High Voltage Disconnect Switch. The High Voltage Disconnect Switch provides a reliable means of isolating electrical circuits for maintenance or emergency purposes. This feature is indispensable for enhancing system safety, allowing operators to safely disconnect power without interrupting the entire network. The High Voltage Disconnect Switch incorporated in this switchgear is designed to offer smooth operation, minimal maintenance, and a long service life, which are crucial for maintaining operational efficiency in medium voltage networks.

The High Voltage Disconnect Switch within this switchgear is engineered to meet rigorous performance criteria, including precise switching capabilities and robust mechanical construction. This ensures that the switch can reliably open and close circuits under load or no-load conditions, preventing electrical faults and protecting downstream equipment. Its design also minimizes arcing and contact wear, which contributes to reduced maintenance costs and extended operational periods.

Furthermore, the switchgear’s modular construction allows for easy installation, flexible configuration, and seamless integration into existing electrical systems. This adaptability is particularly beneficial for expanding power networks or upgrading legacy systems without significant downtime or infrastructure overhaul. The compact design also optimizes space usage in electrical rooms or substations, making it a practical choice for various installation environments.

Safety is a paramount consideration in the design of this Medium Voltage Switchgear. Alongside the High Voltage Disconnect Switch, the equipment incorporates multiple safety features, such as interlocking mechanisms, clear indicator systems, and grounding provisions. These measures ensure that operations are conducted safely, reducing the risk of accidental contact with live parts and enhancing the overall safety of personnel and equipment.

In summary, the Medium Voltage Switchgear with its rated operating voltage of AC220 Ua, rated voltage of 12 KV, and rated current of 630 A, combined with an IP4X protection degree and a power frequency withstand voltage of 42/48 KV, presents a highly reliable and efficient solution for medium voltage electrical distribution. The integration of the High Voltage Disconnect Switch further enhances its operational safety and functionality, making it an indispensable component for modern electrical networks. Whether for industrial plants, commercial facilities, or utility substations, this switchgear delivers dependable performance, safety, and ease of maintenance, meeting the demanding requirements of today’s electrical infrastructure.

Features:

• Product Name: Medium Voltage Switchgear
• Protection Degree: IP4X
• Rated Operating Voltage: AC220 Ua
• Rated Frequency: 50 Hz
• Rated Short-Time Withstand Current: 20 KA
• Rated Peak Withstand Current: 50 KA
• Includes High Voltage Disconnect Switch for enhanced safety
• Features an Electronic Dimmer Switch for precise control
• Equipped with High Voltage Disconnect Switch to ensure reliable operation

Technical Parameters:

Applications:

The TIANAN HXGT6-12 Medium Voltage Switchgear, also known as the Box Type Gas Insulation Metal-clad Switchgear, is a highly reliable and efficient solution designed for various high-demand electrical applications. Originating from China and certified under IEC&GB standards, this switchgear is engineered to meet the rigorous requirements of modern power distribution systems. With a rated frequency of 50 Hz and a rated short circuit duration of 4 seconds, it ensures stable and safe operation even under extreme conditions. The switchgear’s rated short-time withstand current of 20 KA and rated peak withstand current of 50 KA highlight its robustness and capability to handle transient fault currents effectively.

This medium voltage switchgear is ideal for application occasions that require dependable high voltage disconnecting switch functionality. It is extensively used in power plants, substations, industrial facilities, and commercial buildings where reliable load isolation and circuit protection are critical. The TIANAN HXGT6-12 provides seamless integration within high voltage systems, making it indispensable for scenarios involving frequent switching operations or maintenance activities. Its gas-insulated design ensures compactness and minimizes environmental impact, which is essential in urban and space-constrained installations.

In scenarios such as power distribution networks, the High Voltage Disconnecting Switch incorporated in this switchgear plays a crucial role in isolating electrical circuits during faults or maintenance, preventing damage to equipment and enhancing personnel safety. The packaging, delivered in sturdy wooden cases, guarantees that each set reaches the customer intact, ready for immediate installation. With a supply capacity of 500 sets per year and a delivery time of 30 days per set, TIANAN ensures timely fulfillment of orders along with flexible payment terms including FOB, EXW, and CIF.

Overall, the TIANAN HXGT6-12 Medium Voltage Switchgear is perfectly suited for any occasion or scenario requiring dependable high voltage disconnecting switch operations. Its advanced features, combined with industry certifications and robust design, make it a preferred choice for engineers and project managers aiming to enhance the reliability and safety of medium voltage power distribution systems across diverse applications.

Customization:

The TIANAN HXGT6-12 Medium Voltage Switchgear is a reliable and customizable solution designed to meet your specific needs. Manufactured in CHINA and certified under IEC&GB standards, this switchgear ensures compliance with international quality benchmarks.

With a rated voltage of 12 KV, rated current of 630 A, and a rated short-time withstand current of 20 KA, this product is built for durability and high performance. It also features a rated peak withstand current of 50 KA, making it suitable for demanding electrical environments.

Our Medium Voltage Switchgear is designed in accordance with the IEC62271 standard and comes in robust packaging using a WOODEN CASE to ensure safe delivery. The minimum order quantity is 1 SET, with a supply ability of 500 sets per year, and delivery time of 30 DAYS per set.

We offer flexible payment terms including FOB, EXW, CIF, and others to accommodate your purchasing preferences. Pricing is to be confirmed based on customization requirements and order volume.

Customization options include integration with Electronic Dimmer Switch technology and compatibility with High Voltage Disconnecting Switch components, allowing enhanced control and safety for your electrical systems.

Choose the TIANAN HXGT6-12 Medium Voltage Switchgear for a customizable, high-quality, and reliable electrical solution tailored to your needs, incorporating advanced features such as the Electronic Dimmer Switch for optimized performance.

Support and Services:

Our Medium Voltage Switchgear products are backed by comprehensive technical support and services to ensure optimal performance and reliability. Our expert team provides installation guidance, routine maintenance, troubleshooting assistance, and upgrade services tailored to your specific operational needs. We offer detailed product documentation, training programs for your technical staff, and prompt support to minimize downtime. Additionally, our service packages include preventive maintenance contracts, emergency repair services, and spare parts supply to keep your switchgear operating efficiently throughout its lifecycle.

Packing and Shipping:

Our Medium Voltage Switchgear is carefully packaged to ensure protection during transportation and handling. Each unit is securely wrapped with industrial-grade materials and placed in a robust wooden crate designed to withstand rough shipping conditions. Internal cushioning and moisture-resistant liners are used to safeguard sensitive components from damage and environmental factors.

Shipping of the Medium Voltage Switchgear is managed with precision to guarantee timely and safe delivery. We coordinate with reliable freight carriers and provide detailed documentation for customs clearance and handling requirements. Upon delivery, each package is inspected to confirm integrity, ensuring that our customers receive their products in perfect condition and ready for installation.

FAQ:

Q1: What is the brand and model number of the Medium Voltage Switchgear?

A1: The Medium Voltage Switchgear is branded TIANAN and the model number is HXGT6-12.

Q2: Where is the Medium Voltage Switchgear manufactured?

A2: This product is manufactured in China.

Q3: What certifications does the TIANAN HXGT6-12 Medium Voltage Switchgear have?

A3: The switchgear is certified according to IEC and GB standards.

Q4: What is the minimum order quantity and packaging for this switchgear?

A4: The minimum order quantity is 1 set, and it is packaged in a wooden case.

Q5: What are the delivery time and payment terms available?

A5: The delivery time is 30 days per set. Payment terms include FOB, EXW, CIF, and other options.

Q6: What is the supply ability of the TIANAN HXGT6-12 Medium Voltage Switchgear?

A6: The supply ability is 500 sets per year.
