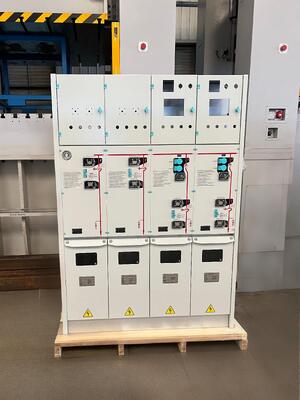

Rated short circuit duration 4s High Voltage Disconnect Switch suitable for 50 Hz electrical systems ensuring power isolation and safety

Product Description:

The Box Type Gas Insulation Metal-clad Switchgear is a state-of-the-art medium voltage switchgear solution designed to meet the rigorous demands of modern electrical distribution systems. Engineered in compliance with the IEC62271 standard, this switchgear ensures optimal performance, safety, and reliability in various industrial and commercial applications. With a rated current of 630 A, it is well-suited for medium voltage networks, providing efficient control and protection for electrical circuits.

This switchgear features a rated short circuit duration of 4 seconds, which guarantees its ability to withstand fault conditions without compromising operational integrity. The robust design allows it to handle a rated short-time withstand current of 20 kA, ensuring that it can safely interrupt and isolate fault currents during short circuits or other fault scenarios. This high level of short circuit performance makes it an ideal choice for critical power distribution systems where reliability and safety are paramount.

One of the key advantages of the Box Type Gas Insulation Metal-clad Switchgear is its compact and modular construction, which saves valuable floor space while simplifying installation and maintenance processes. The gas insulation technology effectively reduces the risk of electrical arcs and enhances the overall safety of the switchgear, making it suitable for environments with strict safety requirements.

Incorporated within this medium voltage switchgear is the High Voltage Disconnecting Switch, a vital component that allows for the safe isolation of electrical circuits during maintenance or emergency situations. This disconnecting switch ensures that the circuit is completely de-energized, providing a secure working environment for technicians and minimizing the risk of electrical accidents. Its reliable operation is critical in maintaining the continuity and safety of the power distribution system.

Additionally, the switchgear integrates an Electronic Dimmer Switch, which offers precise control over electrical loads. This feature enables the fine adjustment of voltage and current levels, improving energy efficiency and reducing wear on electrical equipment. The inclusion of this electronic dimmer switch highlights the product’s versatility and adaptability to modern electrical networks that demand sophisticated control mechanisms.

The high voltage disconnecting switch incorporated in this gas-insulated metal-clad switchgear is designed for durability and long service life. It can endure frequent operations and harsh environmental conditions without performance degradation. This reliability ensures that the switchgear can maintain uninterrupted power supply and protect valuable electrical assets over extended periods.

Compliance with the IEC62271 standard confirms that the Box Type Gas Insulation Metal-clad Switchgear meets international safety and performance benchmarks. This adherence to global standards assures users of the product’s quality, safety, and compatibility with other electrical components and systems worldwide.

In summary, the Box Type Gas Insulation Metal-clad Switchgear is an advanced medium voltage switchgear solution that combines high performance, safety, and versatility. Its rated current of 630 A, ability to withstand short circuits for 4 seconds at 20 kA, and compliance with IEC62271 make it a dependable choice for a wide range of applications. The integration of key components such as the High Voltage Disconnecting Switch and Electronic Dimmer Switch further enhances its functionality, offering reliable isolation and precise control capabilities. This makes the switchgear an excellent investment for ensuring efficient, safe, and resilient power distribution in medium voltage networks.

Features:

• Product Name: Medium Voltage Switchgear
• Rated Peak Withstand Current: 50 KA
• Rated Power Frequency Withstand Voltage: 42/48 KV
• Applicable Standard: IEC62271
• Rated Frequency: 50 Hz
• Rated Voltage: 12 KV
• Includes High Voltage Disconnecting Switch for enhanced safety and reliability
• Equipped with High Voltage Disconnecting Switch to ensure secure isolation during maintenance
• Features High Voltage Disconnecting Switch for optimal performance in medium voltage applications

Technical Parameters:

Applications:

The TIANAN HXGT6-12 Medium Voltage Switchgear is an advanced electrical solution designed for reliable and efficient power distribution in various industrial and commercial environments. Manufactured in China and certified under IEC&GB standards, this switchgear ensures high performance and safety in medium voltage applications. With a rated power frequency withstand voltage of 42/48 KV, a rated current of 630 A, and an impressive rated short-time withstand current of 20 KA, the HXGT6-12 model is built to handle demanding electrical loads with ease.

This switchgear is ideal for use in power plants, substations, factories, and commercial buildings where stable and secure electrical distribution is crucial. It is particularly suited for scenarios requiring the integration of high voltage disconnecting switches to safely isolate electrical circuits during maintenance or emergency conditions. The HXGT6-12 also supports the use of electronic dimmer switches, allowing for precise control of lighting and other electrical devices in complex power systems, enhancing energy efficiency and operational flexibility.

Thanks to its robust design, including a rated short circuit duration of 4 seconds and a rated peak withstand current of 50 KA, the TIANAN HXGT6-12 switchgear guarantees resilience against electrical faults and transient surges. Its compact structure and reliable performance make it an excellent choice for upgrading existing electrical infrastructure or installing in new projects requiring medium voltage switchgear solutions.

TIANAN offers this product with a minimum order quantity of 1 SET, packaged securely in a wooden case to ensure safe delivery. The supply ability is 500 sets per year, with a delivery time of approximately 30 days per set. Flexible payment terms including FOB, EXW, CIF, and others are available to accommodate various customer preferences. The price is to be confirmed based on order specifications and volume.

In summary, the TIANAN HXGT6-12 Medium Voltage Switchgear stands out as a reliable, high-performance product tailored for critical power distribution tasks. Whether integrating electronic dimmer switches for lighting control or employing high voltage disconnecting switches for safety, this switchgear meets the stringent demands of modern electrical systems, ensuring operational continuity and safety in diverse application occasions and scenarios.

Customization:

TIANAN offers the HXGT6-12 Box Type Gas Insulation Metal-clad Switchgear, a reliable Medium Voltage Switchgear solution designed to meet IEC&GB certification standards. With a rated current of 630 A and rated voltage of 12 KV, this switchgear ensures superior performance and safety in electrical distribution systems.

Our switchgear supports a rated short circuit duration of 4 seconds and complies with the IEC62271 applicable standard, guaranteeing high-quality and durability. The product is ideal for applications requiring Electronic Dimmer Switch integration, as well as High Voltage Disconnecting Switch and High Voltage Disconnect Switch functionalities.

Manufactured in China, TIANAN's HXGT6-12 model is supplied with a minimum order quantity of 1 SET. Each unit is carefully packaged in a wooden case to ensure safe delivery. The delivery time is approximately 30 days per set, with flexible payment terms including FOB, EXW, CIF, and more.

With a supply ability of 500 units per year, TIANAN is committed to providing dependable Medium Voltage Switchgear solutions tailored to your requirements. For pricing details, please contact us as the price is to be confirmed.

Support and Services:

Our Medium Voltage Switchgear product is backed by comprehensive technical support and services to ensure optimal performance and reliability. We offer expert installation guidance, routine maintenance services, and prompt troubleshooting assistance to minimize downtime and extend the lifespan of your equipment. Our team of skilled engineers is available to provide training, technical documentation, and on-site support tailored to your specific operational needs. Additionally, we supply genuine replacement parts and upgrade solutions to keep your switchgear up to date with the latest industry standards and technologies.

Packing and Shipping:

The Medium Voltage Switchgear product is carefully packaged to ensure maximum protection during transportation and handling. Each unit is securely wrapped with protective materials to prevent damage from moisture, dust, and mechanical impact. The switchgear is then placed in a robust wooden crate reinforced with steel straps to provide structural integrity and stability.

Inside the packaging, cushioning materials such as foam inserts and shock absorbers are used to minimize vibrations and shocks. All movable parts are immobilized to avoid any internal damage. Additionally, the packaging is clearly labeled with handling instructions, including “Fragile,” “This Side Up,” and lifting points to guide safe transportation.

For shipping, the Medium Voltage Switchgear is transported using suitable vehicles equipped to handle heavy and sensitive electrical equipment. The shipment is planned to ensure minimal transit time and secure loading and unloading procedures. Upon delivery, the packaging is inspected for any signs of damage, and all components are checked to confirm that the product has arrived in perfect condition, ready for installation and operation.
